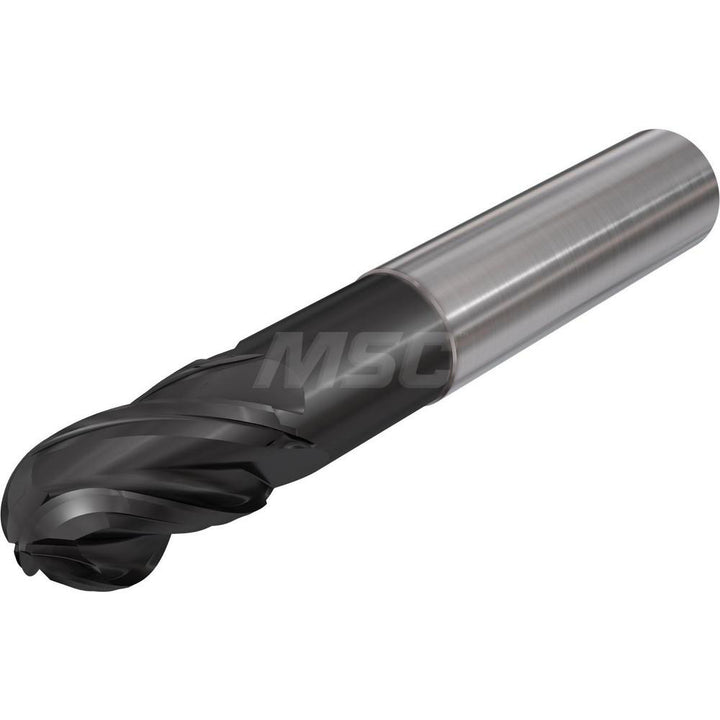

1/2" 5-Flute Solid Carbide Ball End Mill, TiAlCN - Iscar 3398507

Iscar

1/2" 5-Flute Solid Carbide Ball End Mill, TiAlCN - Iscar 3398507

MFR# 3398507Cat# EBI-5 .5-.63CVF2.5Series Flash Solid

$85.89List $103.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3398507 is a 1/2 5-flute Solid Carbide ball end mill with a TiAlCN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length. Series Flash Solid.

Specifications

Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in5/8
Manufacturers catalog numberEBI-5 .5-.63CVF2.5
Mill diameter in1/2
Number of flutes5
Overall length in2-1/2
Shank diameter in1/2
Single or double endSingle
Variable helixNo
Variable indexYes
