1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Kennametal 7077845

Kennametal

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - Kennametal 7077845

MFR# 7077845Series UGDE

$196.02List $251.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

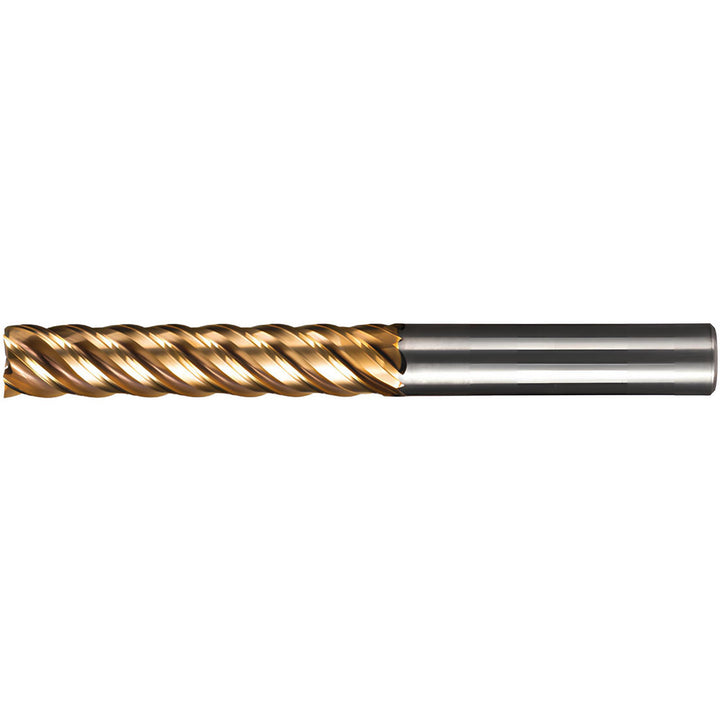

The Kennametal 7077845 is a 1/2 5-flute Solid Carbide square end mill with a AlCrN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 2-1/2 length of cut, 5 overall length. Series UGDE.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlCrN
Coating finish familyAlCrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle43
Length of cut in2-1/2
Length typeLong
Mill diameter in1/2
Number of flutes5
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials
Shank diameter in1/2
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
