Emuge

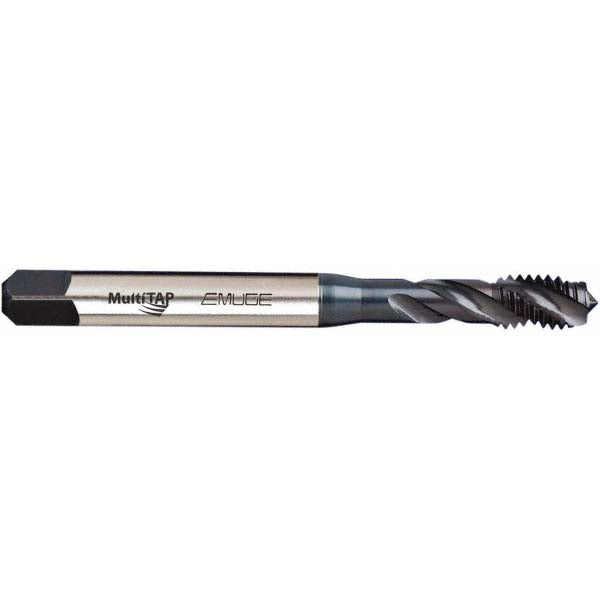

M4x0.70 Metric Coarse Vanadium High-Speed Steel Tap, Oxide - Emuge B4933200.0040
MFR# B4933200.0040Series Enorm
$23.59List $28.06
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingOxide
Description
The Emuge B4933200.0040 is a Metric Coarse Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length (mm)63.00
OversizeNo
Shank diameter (mm)4.50
Square size (mm)3.40
Tapping depth (mm)21.00
Thread directionRight Hand
Thread length (mm)13.00
Thread pitch (mm)0.70
Thread size (mm)M4x0.70
Thread standardMetric Coarse
