Emuge

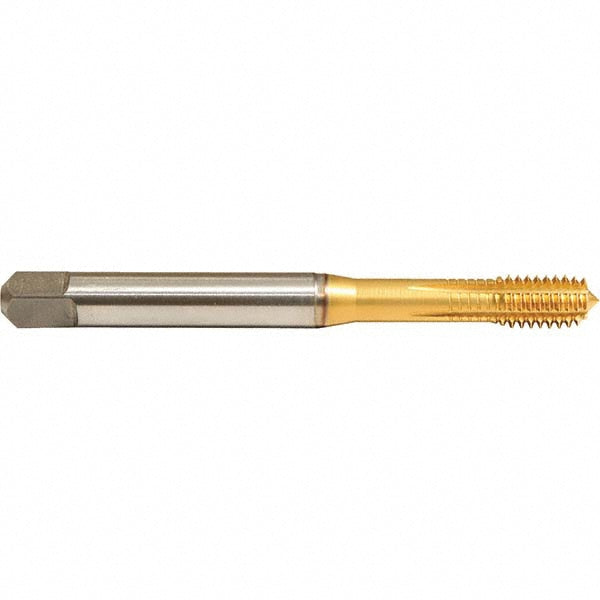

M4x0.7 Metric High-Speed Steel-E-PM Tap, TiN-80 - Emuge B521Z700.0040
MFR# B521Z700.0040Series B521Z700
$95.84List $107.68
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN-80
Description
The Emuge B521Z700.0040 is a Metric High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit6HX
Coating finishTiN-80
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Non-Ferrous Metal
Material application codeP; M; K; N; S
Overall length2.4803
Shank diameter0.1772
Square size0.1339
Tapping depth0.8268
Thread directionRight Hand
Thread length0.2756
Thread size (mm)M4x0.7
Thread standardMetric
Trade nameInnoForm 1-Z-SN-PM-TiN-80
