Emuge

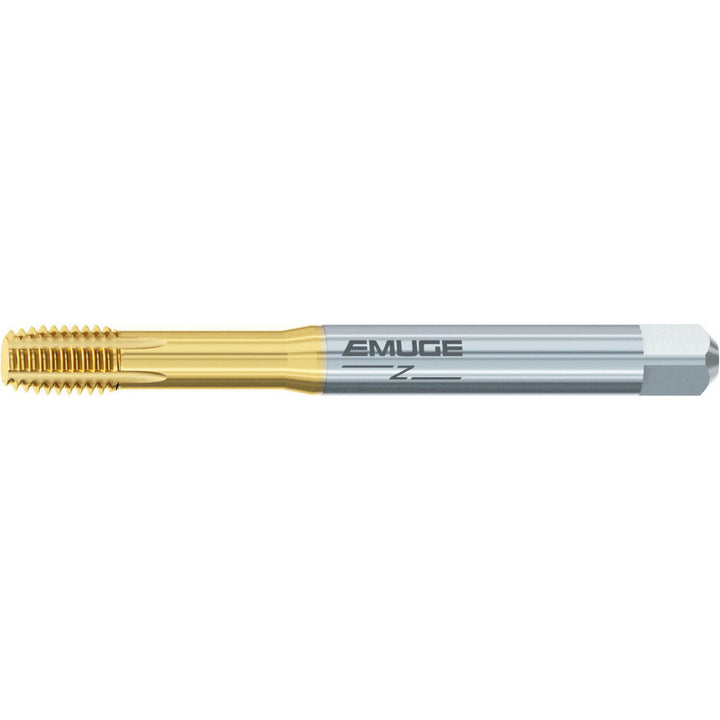

M3x0.5 Metric High-Speed Steel-E-PM Tap, TiN-80 - Emuge B529Z700.0030
MFR# B529Z700.0030Series B529Z700
$101.20List $113.69
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN-80
Description
The Emuge B529Z700.0030 is a Metric High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiN-80
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length2.2047
Shank diameter0.1378
Square size0.1063
Tapping depth0.7087
Thread directionRight Hand
Thread length0.2362
Thread limitD3
Thread size (mm)M3x0.5
Thread standardMetric
Trade nameInnoForm-Z/E-SN--PM-TiN-80
