Emuge

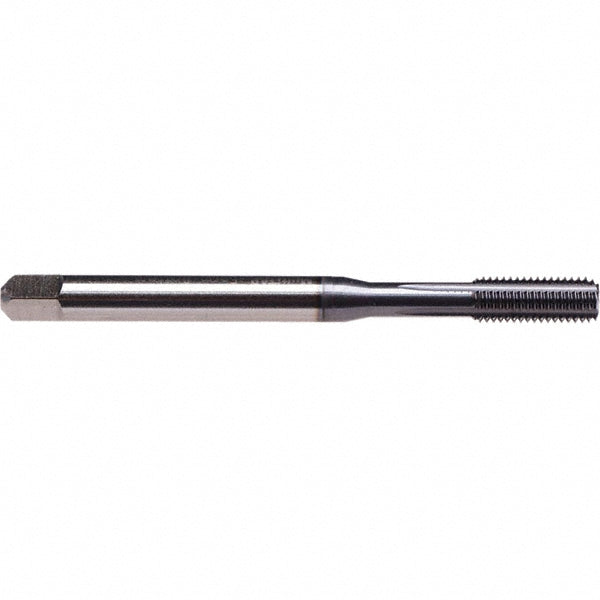

M5x0.8 Metric High-Speed Steel-E Tap, TiCN - Emuge B5999000.0050
MFR# B5999000.0050Series B5999000
$32.23List $38.33
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Emuge B5999000.0050 is a Metric High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length2.7559
Shank diameter0.2362
Square size0.1929
Tapping depth0.9843
Thread directionRight Hand
Thread length0.5906
Thread limitD4
Thread size (mm)M5x0.8
Thread standardMetric
Trade nameInnoForm 1-MULTI/E-SN-TiCN
