Emuge

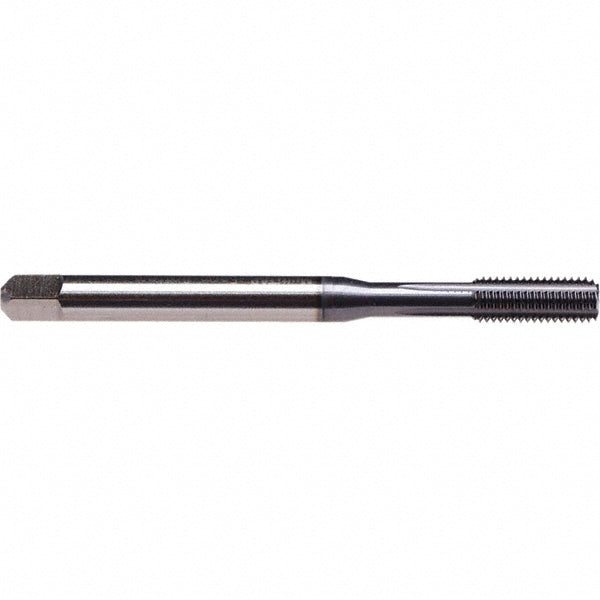

M6x1 Metric High-Speed Steel-E Tap, TiCN - Emuge B5999000.0060
MFR# B5999000.0060Series B5999000
$35.74List $40.16
Save 11%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The Emuge B5999000.0060 is a Metric High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit6HX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.1496
Shank diameter0.2362
Square size0.1929
Tapping depth1.1811
Thread directionRight Hand
Thread length0.6693
Thread limitD5
Thread size (mm)M6x1
Thread standardMetric
Trade nameInnoForm 1-MULTI/E-SN-TiCN
