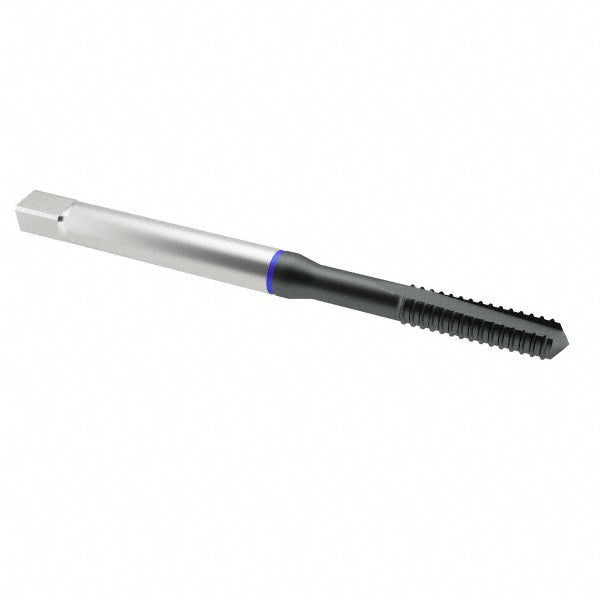

1/4-20 UNC Cobalt Machine Tap, Nitride - Emuge BU100501.5009

Emuge

1/4-20 UNC Cobalt Machine Tap, Nitride - Emuge BU100501.5009

MFR# BU100501.5009Series Rekord A-H

$40.21List $47.82 Save 15%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingNitride

Description

The Emuge BU100501.5009 is a 1/4-20 UNC Cobalt Machine tap with a Nitride finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishNitride
Coolant throughNo
MaterialCobalt
Material applicationAustenitic Iron; Bronze; Ferritic Iron; Gunmetal; High Speed Steel; Low Alloyed Casting Steel; Meehanite Iron; Perlitic; Spheroidal Graphite Iron; Tool Steel
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tap typeMachine
Threads per inch20
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-20
Thread standardUNC
