Emuge

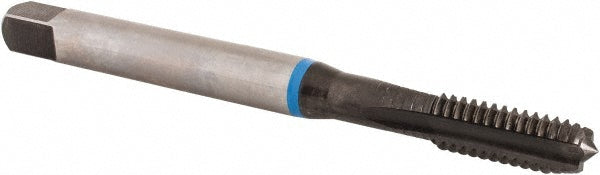

5/16-18 UNC Cobalt Machine Tap, Nitride - Emuge BU100501.5010
MFR# BU100501.5010Series Rekord A-H
$46.99List $52.79
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingNitride
Description
The Emuge BU100501.5010 is a 5/16-18 UNC Cobalt Machine tap with a Nitride finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishNitride
Coolant throughNo
MaterialCobalt
Material applicationAustenitic Iron; Bronze; Ferritic Iron; Gunmetal; High Speed Steel; Low Alloyed Casting Steel; Meehanite Iron; Perlitic; Spheroidal Graphite Iron; Tool Steel
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tap typeMachine
Threads per inch18
Thread directionRight Hand
Thread length0.7870
Thread size in5/16-18
Thread standardUNC
