Emuge

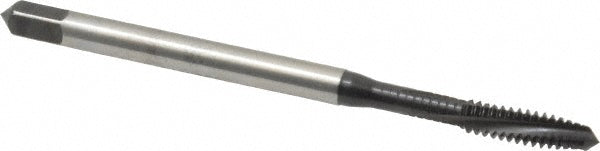

#6-32 UNC Cobalt Tap, Nitride - Emuge BU306001.5005
MFR# BU306001.5005Series Rekord C-Ti
$51.85List $58.26
Save 11%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingNitride
Description
The Emuge BU306001.5005 is a #6-32 UNC Cobalt tap with a Nitride finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2BX
Coating finishNitride
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.7870
Threads per inch32
Thread directionRight Hand
Thread length0.4720
Thread size in#6-32
Thread standardUNC
