Emuge

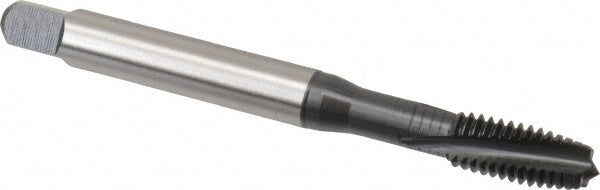

3/8-16 UNC Cobalt Tap, Nitride - Emuge BU306001.5011
MFR# BU306001.5011Series Rekord C-Ti
$67.33List $80.08
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingNitride
Description
The Emuge BU306001.5011 is a 3/8-16 UNC Cobalt tap with a Nitride finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2BX
Coating finishNitride
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.5350
Threads per inch16
Thread directionRight Hand
Thread length0.8660
Thread size in3/8-16
Thread standardUNC
