Emuge

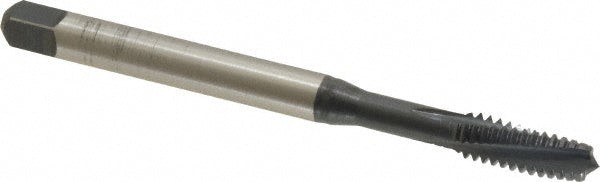

1/4-20 UNC Cobalt Tap, Nitride - Emuge BU306011.5009
MFR# BU306011.5009Series Rekord C-Ti
$56.14List $63.07
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingNitride
Description
The Emuge BU306011.5009 is a 1/4-20 UNC Cobalt tap with a Nitride finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3BX
Coating finishNitride
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-20
Thread standardUNC
