5/16-24 UNF Cobalt Tap, Nitride - Emuge BU306011.5044
MFR# BU306011.5044Series Rekord C-Ti
$60.83List $72.35
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingNitride
Description

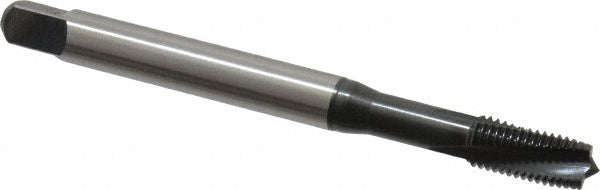

The Emuge BU306011.5044 is a 5/16-24 UNF Cobalt tap with a Nitride finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3BX
Coating finishNitride
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.2600
Threads per inch24
Thread directionRight Hand
Thread length0.6690
Thread size in5/16-24
Thread standardUNF
