Emuge

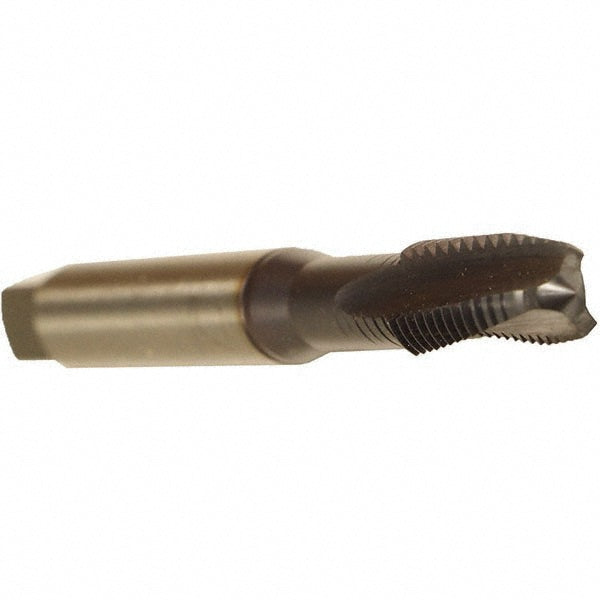

#8-32 UNC Cobalt Tap, TiCN - Emuge BU30J411.5006
MFR# BU30J411.5006Series Rekord C
$59.14List $69.60
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#8-32
CoatingTiCN
Description
The Emuge BU30J411.5006 is a #8-32 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle8
MaterialCobalt
Material applicationCopper Alloy; Hardened Steel; Stainless Steel
Number of flutes3
Overall length2.4800
OversizeNo
Shank diameter0.1680
Shank length1.6530
Square size0.1310
Tapping depth0.8270
Threads per inch32
Thread directionRight Hand
Thread length0.5120
Thread size in#8-32
Thread standardUNC
