Emuge

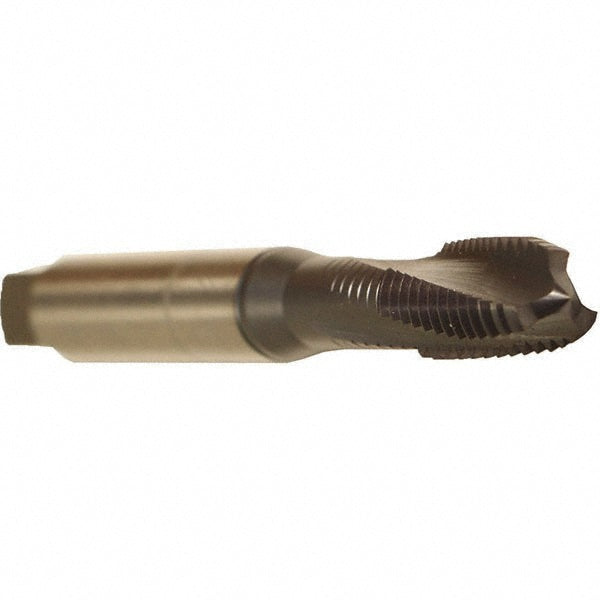

1/4-20 UNC Cobalt Tap, TiCN - Emuge BU35J411.5009
MFR# BU35J411.5009Series Rekord DF
$83.71List $94.04
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiCN
Description
The Emuge BU35J411.5009 is a 1/4-20 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle10
MaterialCobalt
Material applicationCobalt Alloy; Iron Alloy; Nickel Alloy
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Shank length1.9690
Square size0.1910
Tapping depth1.1810
Threads per inch20
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-20
Thread standardUNC
