Emuge

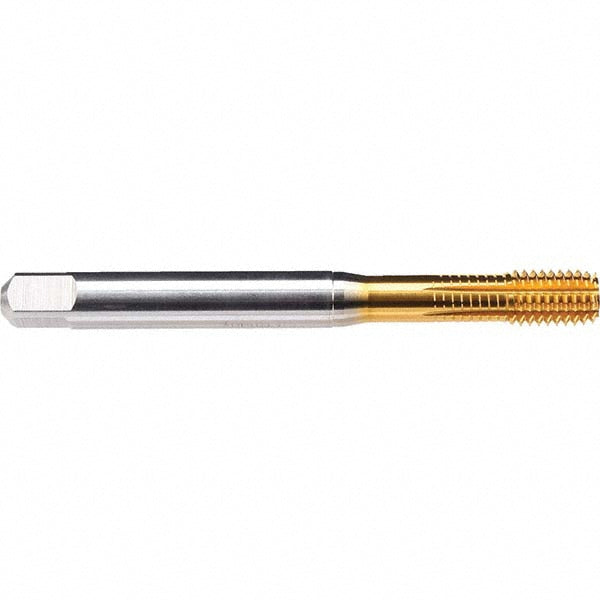

#4-40 UNC High-Speed Steel-E-PM Tap, TiN-T26 - Emuge BU396A00.5003
MFR# BU396A00.5003Series BU396A00
$75.44List $84.76
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiN-T26
Description
The Emuge BU396A00.5003 is a #4-40 UNC High-Speed Steel-E-PM tap with a TiN-T26 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-T26
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length2.2047
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.4331
Thread limitH3
Thread size in#4-40
Thread standardUNC
Trade nameInnoForm 1-VA/E-SN-PM-TiN-T26
