Emuge

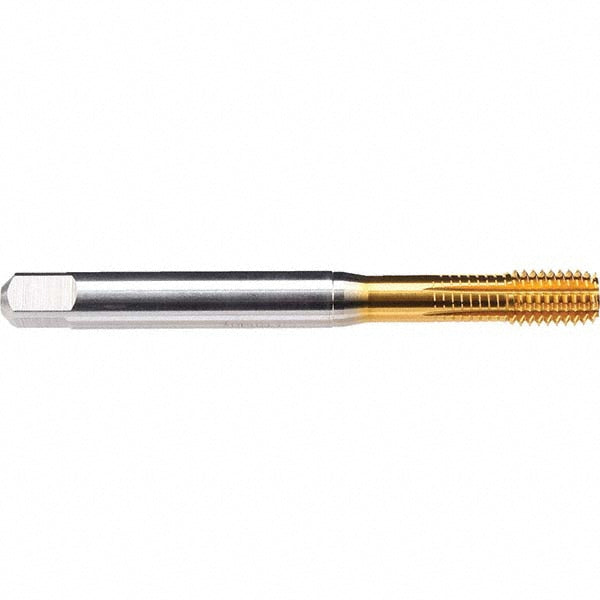

#8-32 UNC High-Speed Steel-E-PM Tap, TiN-T26 - Emuge BU396A00.5006
MFR# BU396A00.5006Series BU396A00
$66.33List $74.52
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingTiN-T26
Description
The Emuge BU396A00.5006 is a #8-32 UNC High-Speed Steel-E-PM tap with a TiN-T26 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-T26
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length2.4803
Shank diameter0.1680
Square size0.1310
Tapping depth0.8270
Thread directionRight Hand
Thread length0.5118
Thread limitH4
Thread size in#8-32
Thread standardUNC
Trade nameInnoForm 1-VA/E-SN-PM-TiN-T26
