Emuge

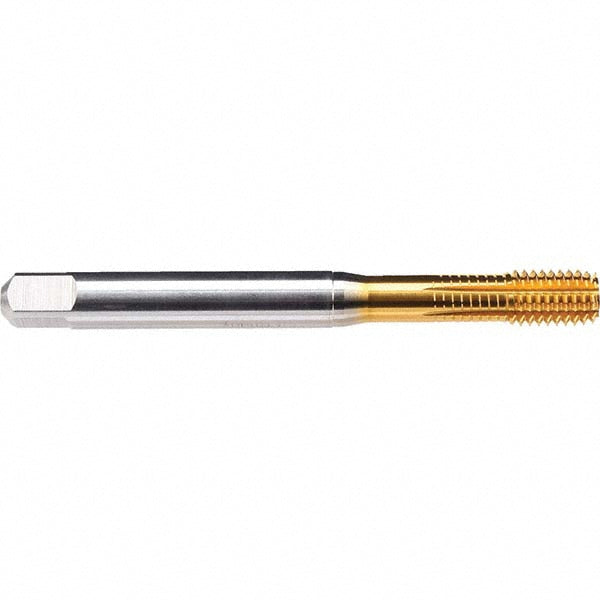

#10-32 UNF High-Speed Steel-E-PM Tap, TiN-T26 - Emuge BU396A00.5041
MFR# BU396A00.5041Series BU396A00
$66.33List $74.52
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiN-T26
Description
The Emuge BU396A00.5041 is a #10-32 UNF High-Speed Steel-E-PM tap with a TiN-T26 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-T26
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel
Material application codeP; M
Overall length2.7559
Shank diameter0.1940
Square size0.1520
Tapping depth0.9843
Thread directionRight Hand
Thread length0.5118
Thread limitH3
Thread size in#10-32
Thread standardUNF
Trade nameInnoForm 1-VA/E-SN-PM-TiN-T26
