Emuge

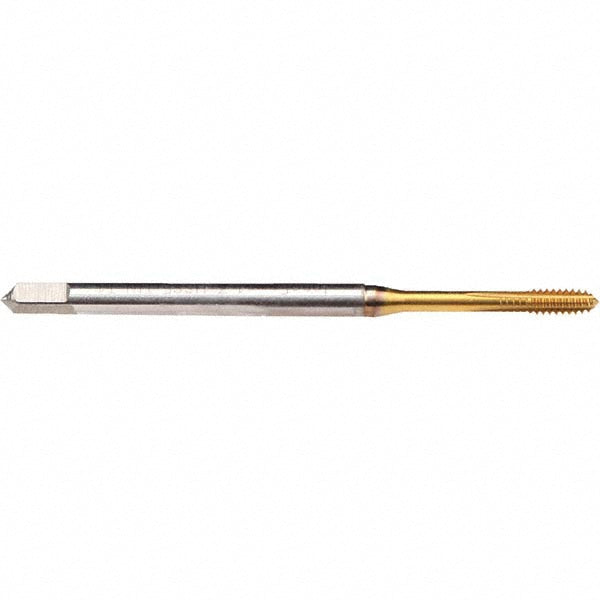

#4-40 UNC High-Speed Steel-E-PM Tap, TiN-80 - Emuge BU39Z700.5003
MFR# BU39Z700.5003Series BU39Z700
$73.99List $83.13
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#4-40
CoatingTiN-80
Description
The Emuge BU39Z700.5003 is a #4-40 UNC High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-80
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Overall length2.2047
Shank diameter0.1410
Square size0.1100
Tapping depth0.7087
Thread directionRight Hand
Thread length0.2362
Thread limitH3
Thread size in#4-40
Thread standardUNC
Trade nameInnoForm 1-Z/E-SN-PM-TiN-80
