Emuge

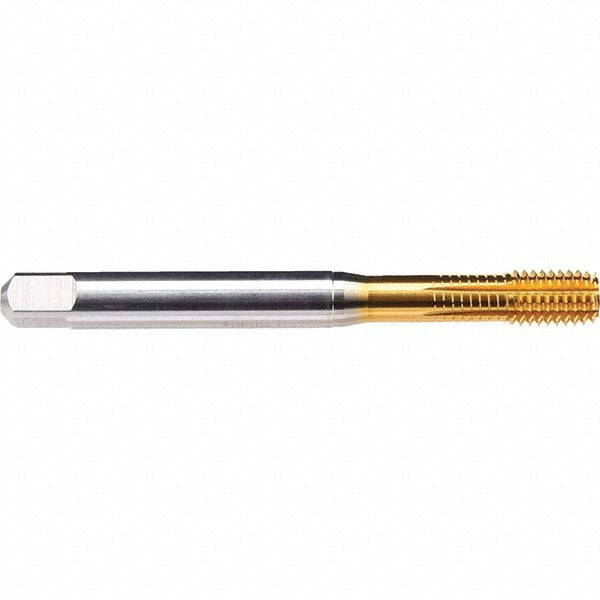

1/4-28 UNF High-Speed Steel-E-PM Tap, TiN-80 - Emuge BU39Z700.5043
MFR# BU39Z700.5043Series BU39Z700
$77.81List $87.42
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-28
CoatingTiN-80
Description
The Emuge BU39Z700.5043 is a 1/4-28 UNF High-Speed Steel-E-PM tap with a TiN-80 finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN-80
Coolant throughNo
MaterialHigh-Speed Steel-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloy
Material application codeP; M; K; N; S
Overall length3.1496
Shank diameter0.2550
Square size0.1910
Tapping depth1.1811
Thread directionRight Hand
Thread length0.5118
Thread limitH4
Thread size in1/4-28
Thread standardUNF
Trade nameInnoForm 1-Z/E-SN-PM-TiN-80
