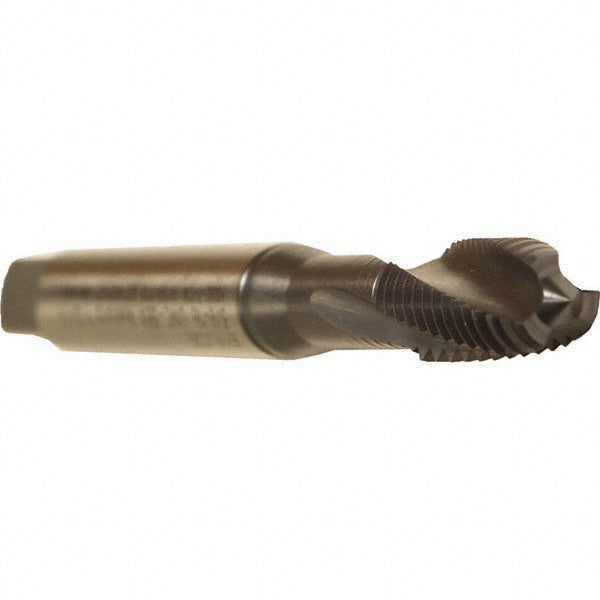

1/4-20 UNC Cobalt Tap, TiCN - Emuge BU459611.5009
MFR# BU459611.5009Series Rekord D
$62.46List $74.29
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiCN
Description
The Emuge BU459611.5009 is a 1/4-20 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationCast Iron; Cobalt Alloy; Copper Alloy; Nickel; Nickel Alloy; Stainless Steel; Steel; Titanium; Titanium Alloy
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Shank length1.9690
Tapping depth1.1810
Thread directionRight Hand
Thread length0.6690
Thread size in1/4-20
Thread standardUNC
