Emuge

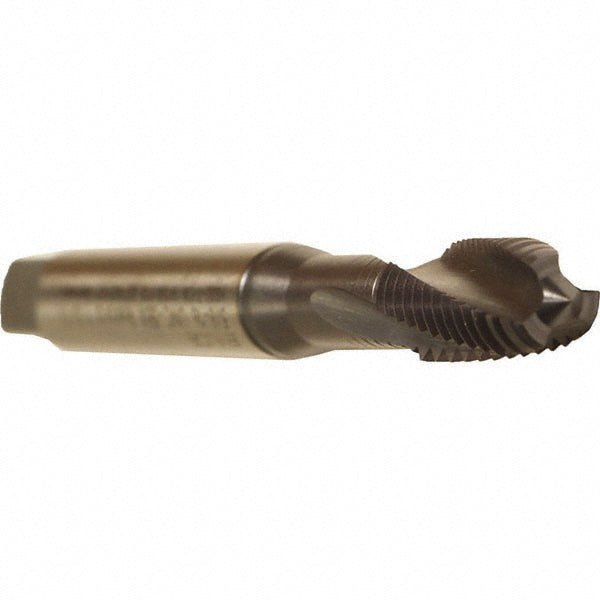

3/8-16 UNC Cobalt Tap, TiCN - Emuge BU459611.5011
MFR# BU459611.5011Series Rekord D
$79.07List $94.04
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The Emuge BU459611.5011 is a 3/8-16 UNC Cobalt tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationCast Iron; Cobalt Alloy; Copper Alloy; Nickel; Nickel Alloy; Stainless Steel; Steel; Titanium; Titanium Alloy
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Shank length2.4020
Square size0.2860
Tapping depth1.5350
Threads per inch16
Thread directionRight Hand
Thread length0.8660
Thread size in3/8-16
Thread standardUNC
