Emuge

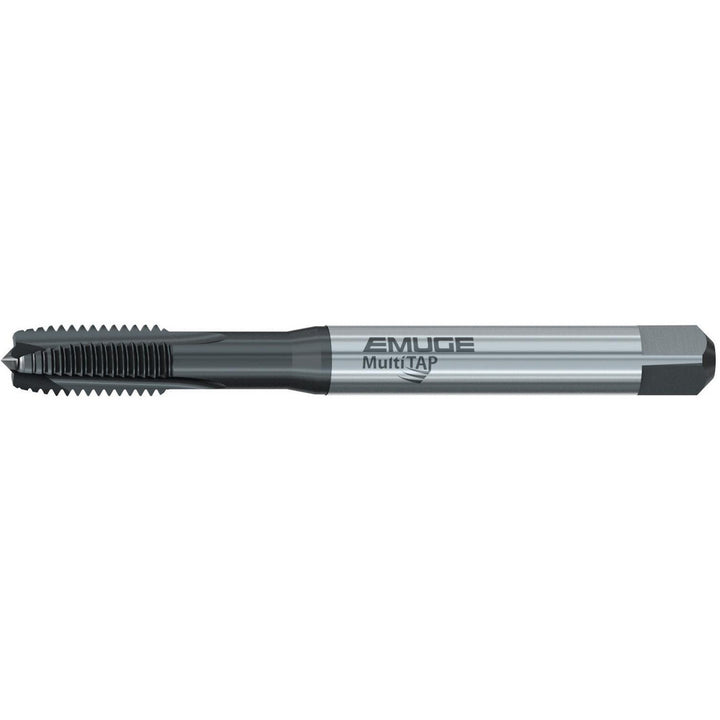

#6-32 UNC HSS-E Cobalt Spiral Point Tap, NT2 - Emuge BU497300.5005
MFR# BU497300.5005Series BU497300
$16.61List $19.76
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingNT2
Description
The Emuge BU497300.5005 is a #6-32 UNC HSS-E Cobalt Spiral Point tap with a NT2 finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishNT2
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length (mm)8.00
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter (mm)3.58
Square size (mm)2.79
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length0.4720
Thread pitch0.0313
Thread size in#6-32
Thread standardUNC
