Emuge

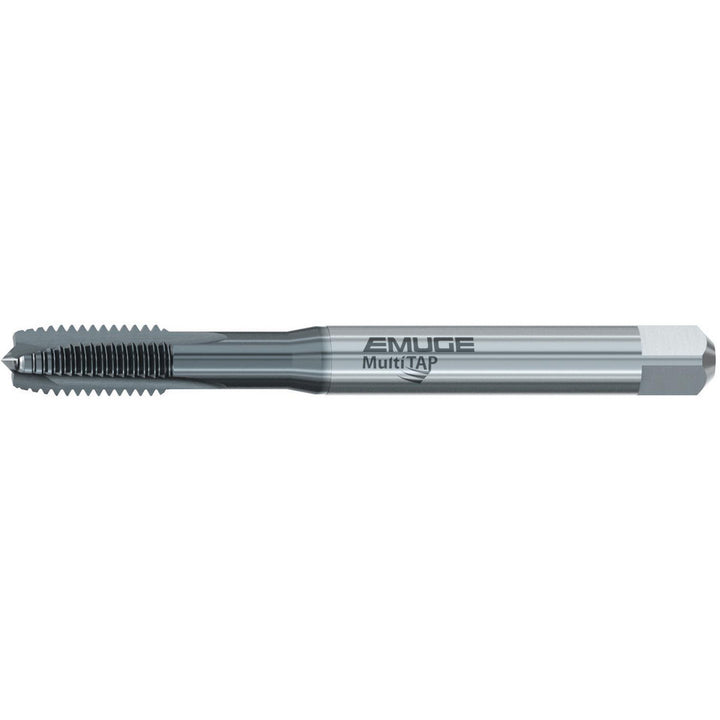

#6-32 UNC HSS-E Cobalt Spiral Point Tap, TiCN - Emuge BU499300.5005
MFR# BU499300.5005Series BU499300
$23.15List $26.01
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingTiCN
Description
The Emuge BU499300.5005 is a #6-32 UNC HSS-E Cobalt Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length (mm)8.00
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.1410
Square size (mm)2.79
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length0.4720
Thread pitch0.0313
Thread size in#6-32
Thread standardUNC
