Emuge

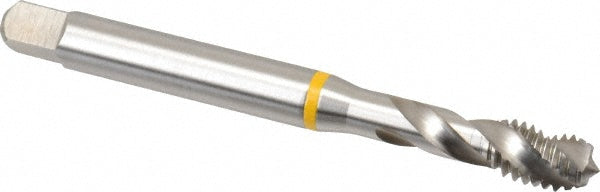

3/8-16 UNC Cobalt Tap - Emuge BU501000.5011
MFR# BU501000.5011Series Enorm
$52.28List $58.74
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
Description
The Emuge BU501000.5011 is a 3/8-16 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.5350
Threads per inch16
Thread directionRight Hand
Thread length0.6300
Thread size in3/8-16
Thread standardUNC
