Emuge

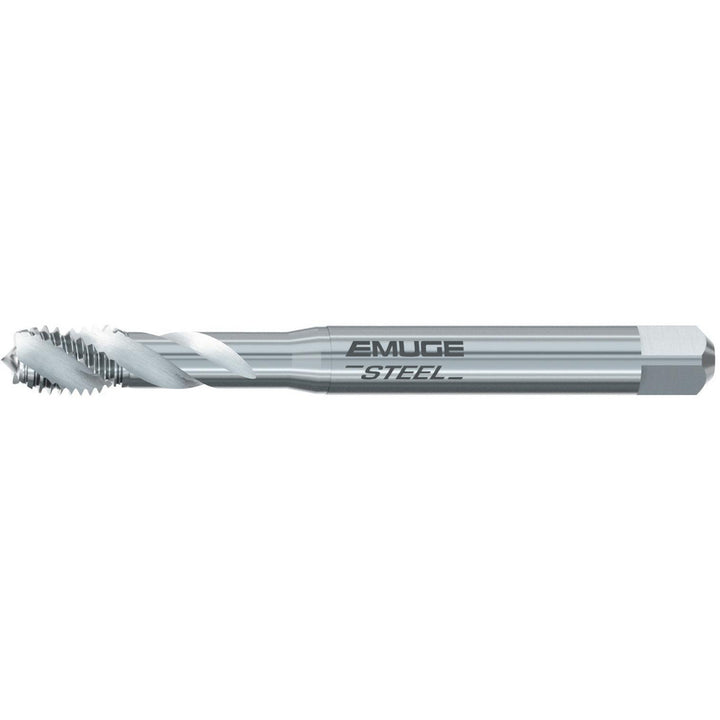

#5-44 UNF Cobalt Tap - Emuge BU501000.5038
MFR# BU501000.5038Series Enorm
$45.99List $51.67
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#5-44
Description
The Emuge BU501000.5038 is a #5-44 UNF Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationNon-Ferrous Metal; Steel
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.7090
Threads per inch44
Thread directionRight Hand
Thread length0.2760
Thread size in#5-44
Thread standardUNF
