Emuge
#0-80 UNF Cobalt Tap, Oxide - Emuge BU503200.5033
MFR# BU503200.5033Series Enorm
$69.69List $78.30
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#0-80
CoatingOxide
Description

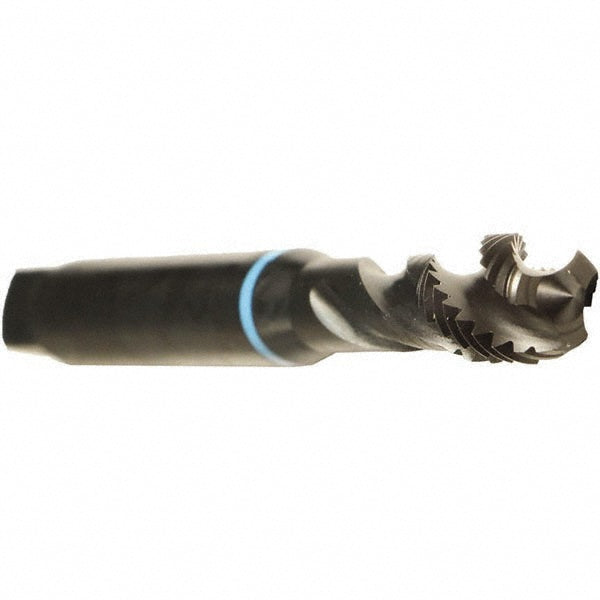

The Emuge BU503200.5033 is a #0-80 UNF Cobalt tap with a Oxide finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes2
Overall length1.6260
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter0.1410
Shank length1.1930
Tapping depth0.4330
Thread directionRight Hand
Thread length0.1570
Thread size in#0-80
Thread standardUNF
