Emuge

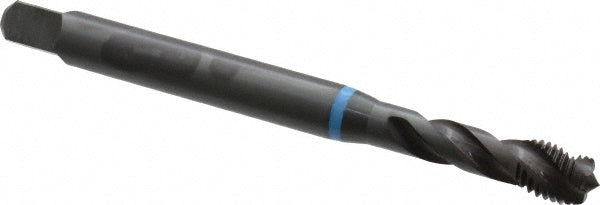

5/16-24 UNF Cobalt Tap, Oxide - Emuge BU503200.5044
MFR# BU503200.5044Series Enorm-VA
$54.68List $61.44
Save 11%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingOxide
Description
The Emuge BU503200.5044 is a 5/16-24 UNF Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationCast Iron; Stainless Steel; Steel
Number of flutes3
Overall length3.5430
OversizeNo
Shank diameter0.3180
Square size0.2380
Tapping depth1.2600
Threads per inch24
Thread directionRight Hand
Thread length0.3940
Thread size in5/16-24
Thread standardUNF
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
