Emuge

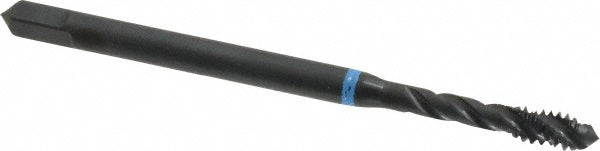

#6-32 UNC Cobalt Tap, Oxide - Emuge BU503210.5005
MFR# BU503210.5005Series Enorm-VA
$43.85List $49.26
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingOxide
Description
The Emuge BU503210.5005 is a #6-32 UNC Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle39
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.7870
Threads per inch32
Thread directionRight Hand
Thread length0.2760
Thread size in#6-32
Thread standardUNC
