Emuge
#4-40 UNC Cobalt Tap, GLT-1 - Emuge BU50C400.5003
MFR# BU50C400.5003Series Enorm
$63.68List $71.54
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingGLT-1
Description

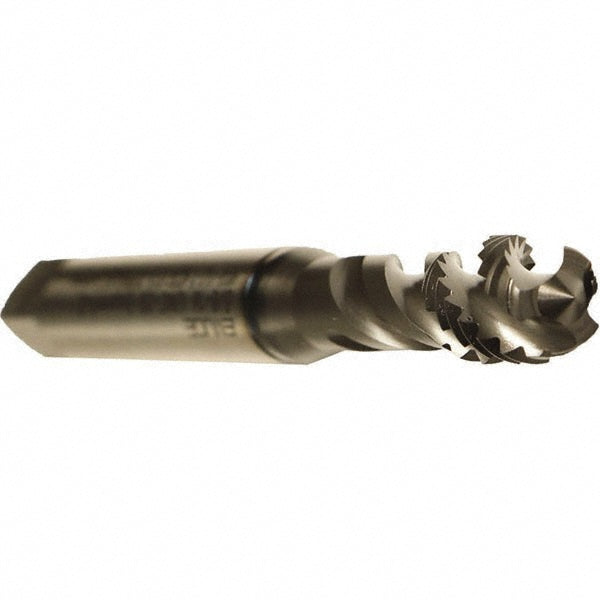

The Emuge BU50C400.5003 is a #4-40 UNC Cobalt tap with a GLT-1 finish. 2 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishGLT-1
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Alloy; Copper; Copper Alloy; Stainless Steel; Steel
Number of flutes2
Overall length2.2050
OversizeNo
Shank diameter0.1410
Shank length1.4960
Tapping depth0.7090
Thread directionRight Hand
Thread length0.2360
Thread size in#4-40
Thread standardUNC
