Emuge

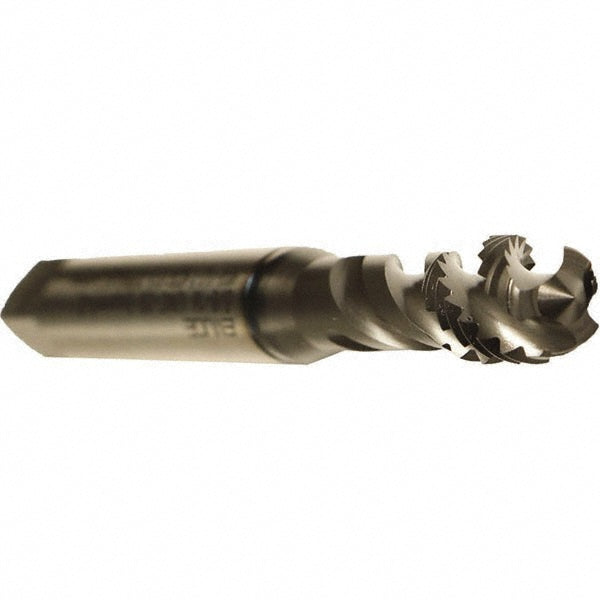

#10-24 UNC Cobalt Tap, GLT-1 - Emuge BU50C400.5007
MFR# BU50C400.5007Series Enorm
$57.70List $64.82
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingGLT-1
Description
The Emuge BU50C400.5007 is a #10-24 UNC Cobalt tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishGLT-1
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAluminum Alloy; Copper; Copper Alloy; Stainless Steel; Steel
Number of flutes3
Overall length2.7560
OversizeNo
Shank diameter0.1940
Shank length1.7720
Square size0.1520
Tapping depth0.9840
Threads per inch24
Thread directionRight Hand
Thread length0.3940
Thread size in#10-24
Thread standardUNC
