Emuge

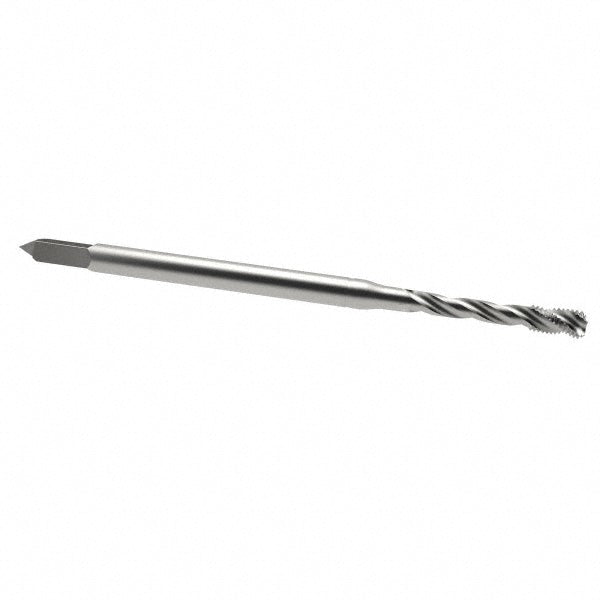

#6-32 UNC Cobalt Tap - Emuge BU513500.5005
MFR# BU513500.5005Series Enorm Z
$47.41List $53.27
Save 11%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
Description
The Emuge BU513500.5005 is a #6-32 UNC Cobalt tap. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes3
Overall length2.2050
OversizeNo
Shank diameter0.1410
Square size0.1100
Tapping depth0.7870
Threads per inch32
Thread directionRight Hand
Thread length0.2760
Thread size in#6-32
Thread standardUNC
