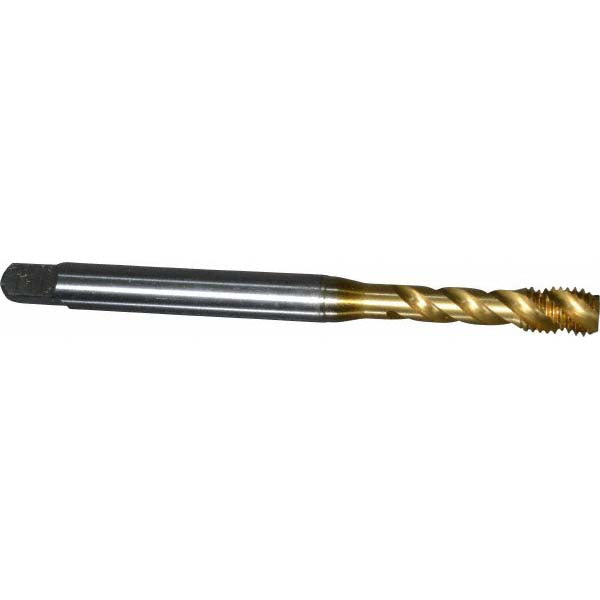

1/4-28 UNF Cobalt Tap, TiN - Emuge BU513700.5043
MFR# BU513700.5043Series Enorm Z
$64.26List $72.19
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiN
Description
The Emuge BU513700.5043 is a 1/4-28 UNF Cobalt tap with a TiN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationAcid-Resistant Steel; Aluminum Alloy; Free-Cutting Steel; Heat-Treated Material; Heat-Treated Steel; High-Alloy Steel Castings; Nickel; Nickel Alloy; Stainless Steel; Steel Castings; Structural Steel; Titanium Alloy; Tool Steel
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
Square size0.1910
Tapping depth1.1810
Threads per inch28
Thread directionRight Hand
Thread length0.3940
Thread size in1/4-28
Thread standardUNF
