Emuge

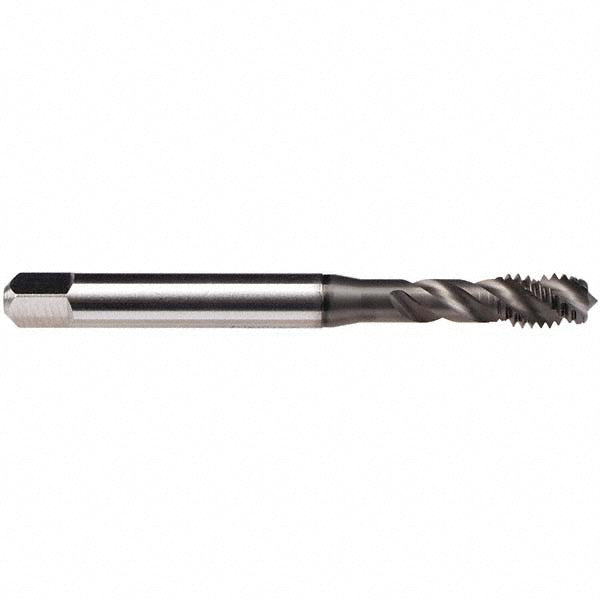

1/4-20 UNC Cobalt Tap, Proprietary - Emuge BU51C410.5009
MFR# BU51C410.5009Series Enorm
$65.78List $73.90
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingProprietary
Description
The Emuge BU51C410.5009 is a 1/4-20 UNC Cobalt tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit3B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialCobalt
Material applicationNon-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy
Neck length1.1811
Number of flutes3
Overall length (mm)80.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.2550
Square size0.1910
Tapping depth0.7500
Threads per inch20
Thread directionRight Hand
Thread length0.5120
Thread limitH3
Thread size in1/4-20
Thread standardUNC
