Emuge

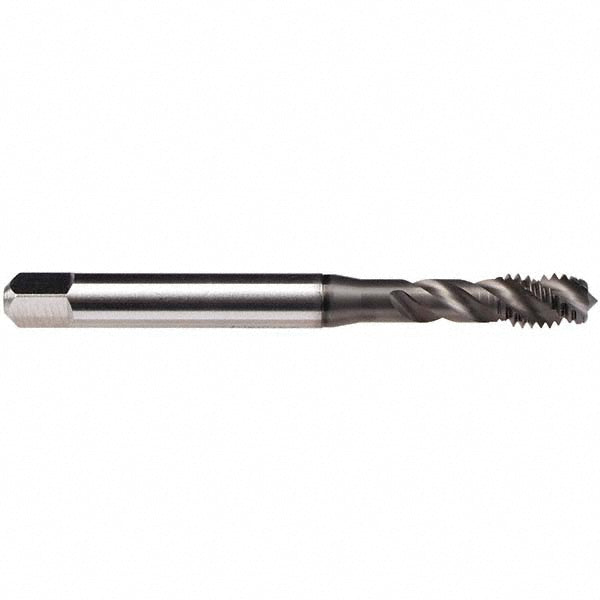

3/8-16 UNC Tap, GLT-1 - Emuge BU51C410.5011
MFR# BU51C410.5011Series Enorm
$84.95List $95.44
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingGLT-1
Description
The Emuge BU51C410.5011 is a 3/8-16 UNC tap with a GLT-1 finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
Chamfer1.5-2 P
Class of fit3B
Coating finishGLT-1
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
Material applicationNon-Ferrous Metal; Stainless Steel; Steel; Titanium Alloy
Neck length1.5354
Number of flutes3
Overall length (mm)100.00
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.1250
Threads per inch16
Thread directionRight Hand
Thread length0.6300
Thread limitH4
Thread size in3/8-16
Thread standardUNC
