Emuge

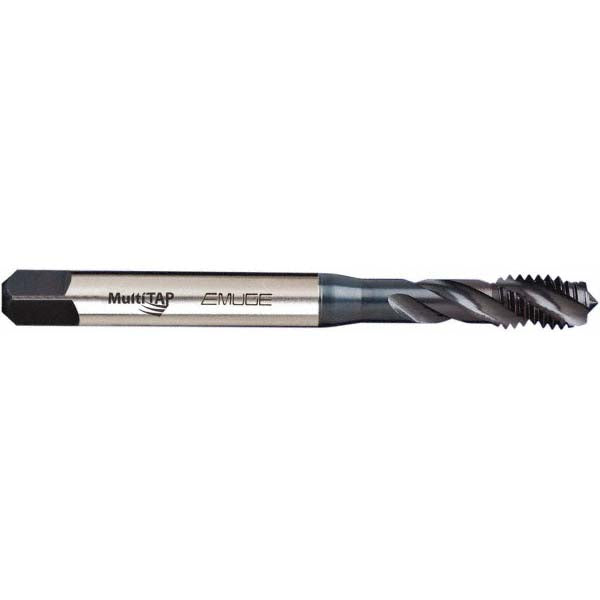

#10-32 UNF Vanadium High-Speed Steel Tap, Oxide - Emuge BU533200.5041
MFR# BU533200.5041Series Enorm
$24.98List $28.06
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingOxide
Description
The Emuge BU533200.5041 is a #10-32 UNF Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B/3B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle38
MaterialVanadium High-Speed Steel
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length2.7560
OversizeNo
Shank diameter0.1940
Square size0.1520
Tapping depth0.9840
Threads per inch32
Thread directionRight Hand
Thread length0.5120
Thread size in#10-32
Thread standardUNF
