Emuge

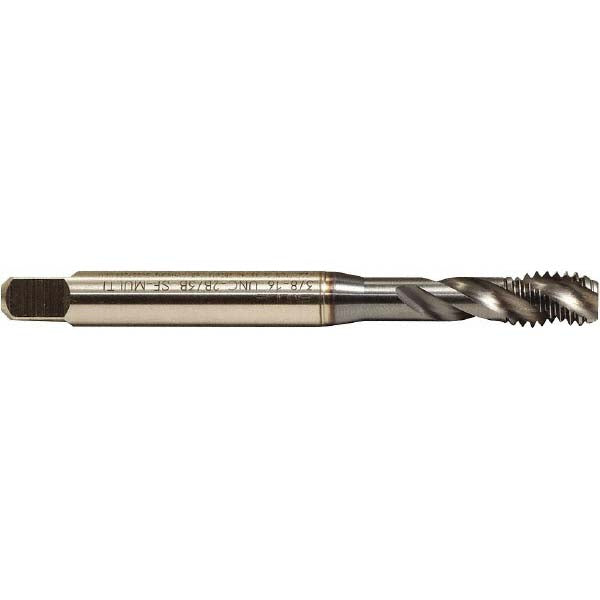

3/8-16 UNC Tap, TiCN - Emuge BU539300.5011
MFR# BU539300.5011Series Enorm
$40.95List $48.71
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiCN
Description
The Emuge BU539300.5011 is a 3/8-16 UNC tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Class of fit2B/3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle35
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Square size0.2860
Tapping depth1.5350
Threads per inch16
Thread directionRight Hand
Thread length0.8660
Thread size in3/8-16
Thread standardUNC
