Emuge

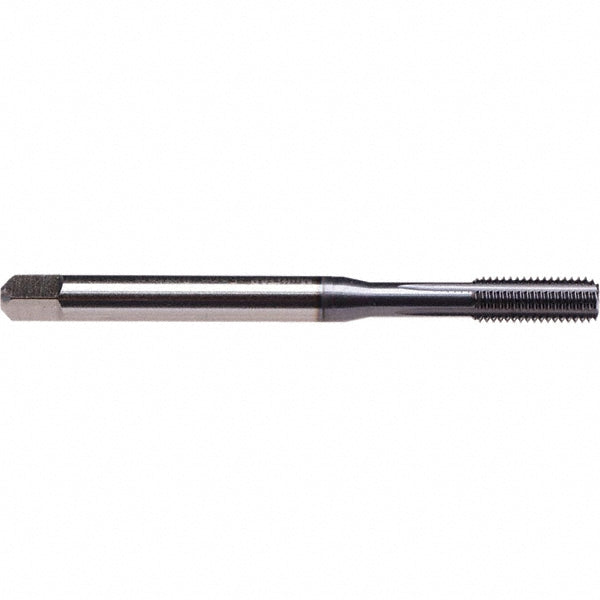

#6-32 UNC High-Speed Steel-E Tap, TiCN - Emuge BU599010.5005
MFR# BU599010.5005Series BU599010
$30.44List $36.21
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#6-32
CoatingTiCN
Description
The Emuge BU599010.5005 is a #6-32 UNC High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length2.2047
Shank diameter0.1410
Square size0.1100
Tapping depth0.7874
Thread directionRight Hand
Thread length0.4724
Thread size in#6-32
Thread standardUNC
Trade nameInnoForm 1-MULTI/E-SN-TiCN
