Emuge

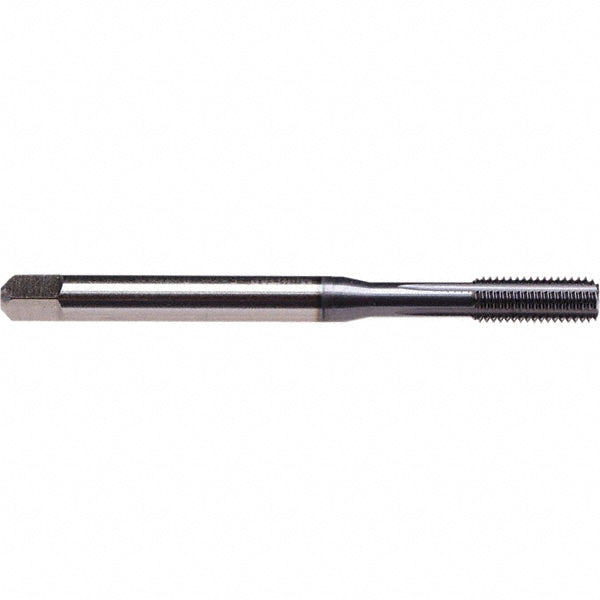

5/16-18 UNC High-Speed Steel-E Tap, TiCN - Emuge BU599010.5010
MFR# BU599010.5010Series BU599010
$40.65List $45.67
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiCN
Description
The Emuge BU599010.5010 is a 5/16-18 UNC High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.7874
Thread size in5/16-18
Thread standardUNC
Trade nameInnoForm 1-MULTI/E-SN-TiCN
