Emuge

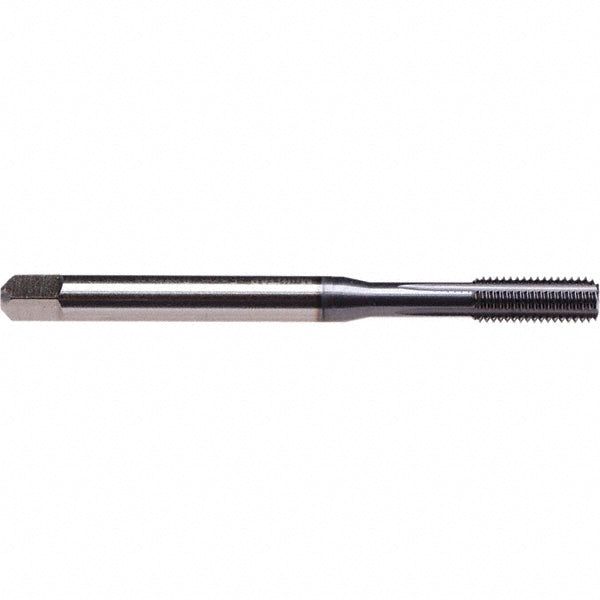

#10-32 UNF High-Speed Steel-E Tap, TiCN - Emuge BU599010.5041
MFR# BU599010.5041Series BU599010
$32.23List $38.33
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
CoatingTiCN
Description
The Emuge BU599010.5041 is a #10-32 UNF High-Speed Steel-E tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiCN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length2.7559
Shank diameter0.1940
Square size0.1520
Tapping depth0.9843
Thread directionRight Hand
Thread length0.5906
Thread size in#10-32
Thread standardUNF
Trade nameInnoForm 1-MULTI/E-SN-TiCN
