Emuge
#2-56 UNC High-Speed Steel-E Tap, Nitride - Emuge BU921000.5001
MFR# BU921000.5001Series BU921000
$82.55List $92.74
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#2-56
CoatingNitride
Description

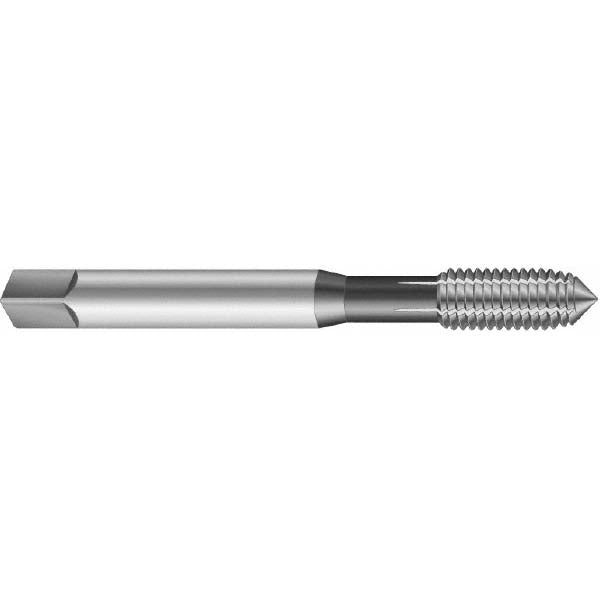

The Emuge BU921000.5001 is a #2-56 UNC High-Speed Steel-E tap with a Nitride finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishNitride
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel
Material application codeP
Overall length1.7717
Shank diameter0.1410
Square size0.1100
Tapping depth0.4720
Thread directionRight Hand
Thread length0.2756
Thread size in#2-56
Thread standardUNC
Trade nameDruck 1-STEEL-SN-NT
