Emuge

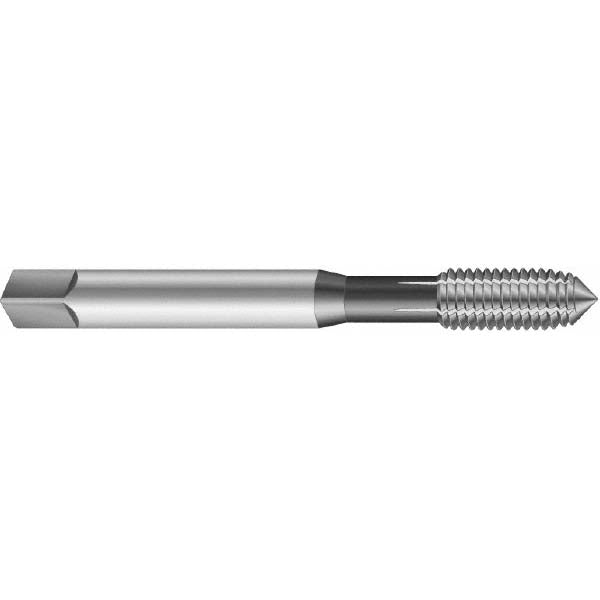

5/16-18 UNC High-Speed Steel-E Tap, Nitride - Emuge BU921000.5010
MFR# BU921000.5010Series BU921000
$64.26List $72.19
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingNitride
Description
The Emuge BU921000.5010 is a 5/16-18 UNC High-Speed Steel-E tap with a Nitride finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishNitride
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel
Material application codeP
Overall length3.5433
Shank diameter0.3180
Square size0.2380
Tapping depth1.3780
Thread directionRight Hand
Thread length0.7874
Thread size in5/16-18
Thread standardUNC
Trade nameDruck 1-STEEL-SN-NT
