Emuge

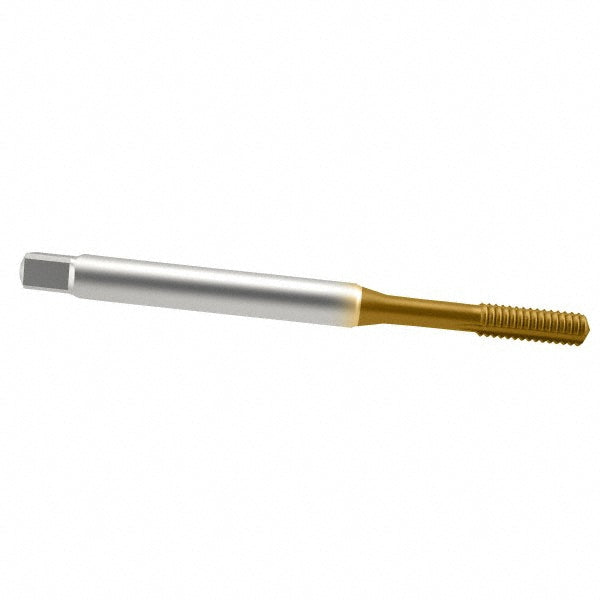

1/4-20 UNC High-Speed Steel-E Tap, TiN - Emuge BU921400.5009
MFR# BU921400.5009Series BU921400
$67.54List $75.88
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiN
Description
The Emuge BU921400.5009 is a 1/4-20 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Chamfered threads2-3P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.1496
Shank diameter0.2550
Square size0.1910
Tapping depth0.1811
Thread directionRight Hand
Thread length0.6693
Thread size in1/4-20
Thread standardUNC
Trade nameDruck 1-STEEL-SN-TiN
