Emuge
1/4-20 UNC High-Speed Steel-E Tap, TiN - Emuge BU931400.5009
MFR# BU931400.5009Series BU931400
$63.01List $74.95
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingTiN
Description

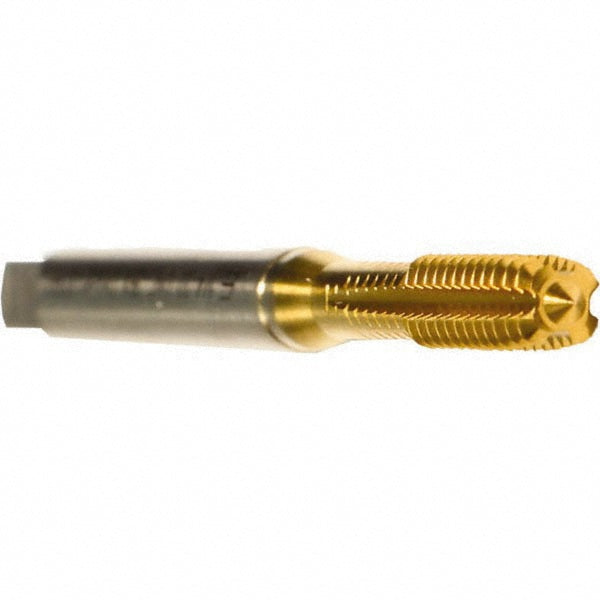

The Emuge BU931400.5009 is a 1/4-20 UNC High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit2BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length3.1496
Shank diameter0.2550
Square size0.1910
Tapping depth0.1811
Thread directionRight Hand
Thread length0.6693
Thread size in1/4-20
Thread standardUNC
Trade nameDruck 1-STEEL/E-SN-TiN
