Emuge

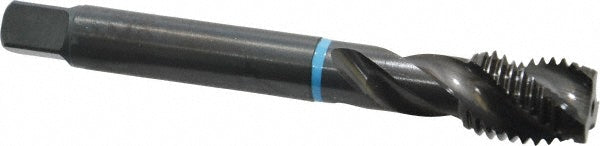

M16x2 Metric Coarse Cobalt Tap, Oxide - Emuge C0503200.0116
MFR# C0503200.0116Series Enorm-VA
$134.69List $151.32
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingOxide
Description
The Emuge C0503200.0116 is a Metric Coarse Cobalt tap with a Oxide finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6H
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleMedium
Helix angle35
MaterialCobalt
Material applicationAcid-Resistant Steel; Alloy Steel Castings; Stainless Steel; Tool Steel
Number of flutes3
Overall length (mm)110.00
OversizeNo
Shank diameter (mm)12.00
Square size (mm)9.00
Thread directionRight Hand
Thread length (mm)22.00
Thread pitch (mm)2.00
Thread size (mm)M16x2
Thread standardMetric Coarse
