Emuge

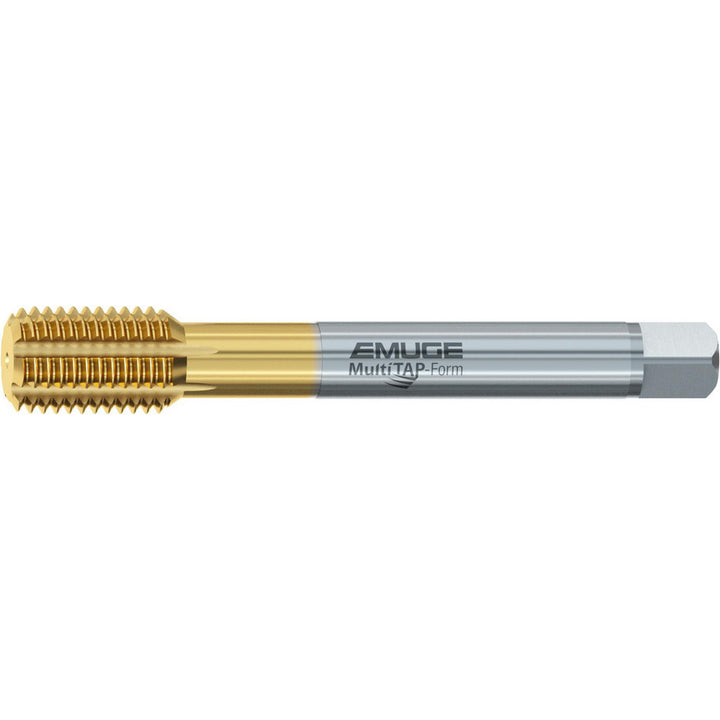

1/2-20 UNF High-Speed Steel-E Tap, TiN - Emuge CU031410.5047
MFR# CU031410.5047Series CU031410
$69.23List $77.78
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-20
CoatingTiN
Description
The Emuge CU031410.5047 is a 1/2-20 UNF High-Speed Steel-E tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1.5-2P
Class of fit3BX
Coating finishTiN
Coolant throughNo
Flute by diameter ratio3xD
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Non-Ferrous Metal
Material application codeP; M; N
Overall length4.3307
Shank diameter0.3670
Square size0.2750
Thread directionRight Hand
Thread length0.8661
Thread size in1/2-20
Thread standardUNF
Trade nameInnoForm 2-MULTI/E-SN-TiN
