Emuge
7/8-9 UNC Cobalt Machine Tap, Nitride - Emuge CU100501.5017
MFR# CU100501.5017Series Rekord A-H
$198.52List $223.03
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size7/8-9
CoatingNitride
Description

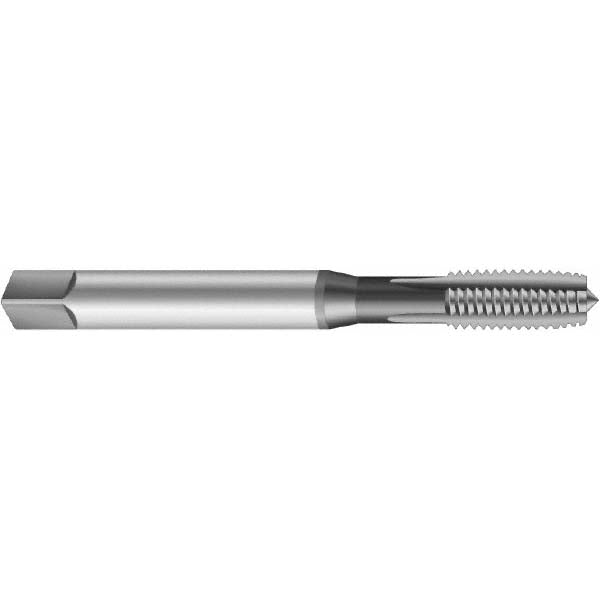

The Emuge CU100501.5017 is a 7/8-9 UNC Cobalt Machine tap with a Nitride finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishNitride
Coolant throughNo
MaterialCobalt
Material applicationAustenitic Iron; Bronze; Ferritic Iron; Gunmetal; High Speed Steel; Low Alloyed Casting Steel; Meehanite Iron; Perlitic; Spheroidal Graphite Iron; Tool Steel
Number of flutes4
Overall length5.5120
OversizeNo
Shank diameter0.6970
Square size0.5230
Tap typeMachine
Threads per inch9
Thread directionRight Hand
Thread length1.2600
Thread size in7/8-9
Thread standardUNC
