Emuge

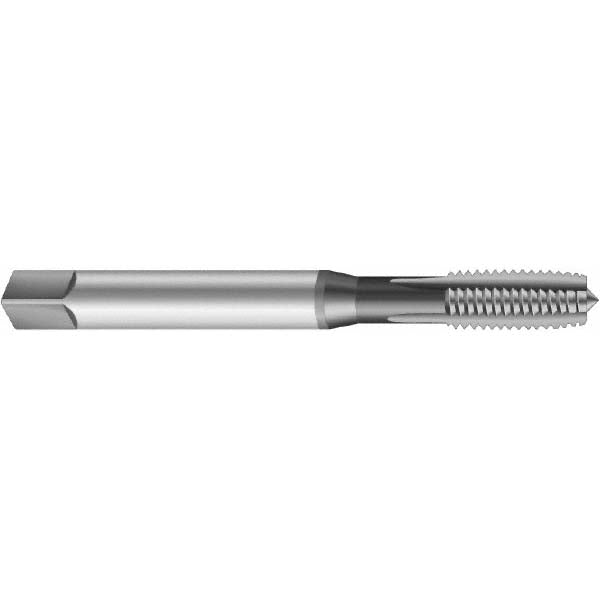

3/4-16 UNF Cobalt Machine Tap, Nitride - Emuge CU100501.5050
MFR# CU100501.5050Series Rekord A-H
$167.82List $188.54
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingNitride
Description
The Emuge CU100501.5050 is a 3/4-16 UNF Cobalt Machine tap with a Nitride finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishNitride
Coolant throughNo
MaterialCobalt
Material applicationAustenitic Iron; Bronze; Ferritic Iron; Gunmetal; High Speed Steel; Low Alloyed Casting Steel; Meehanite Iron; Perlitic; Spheroidal Graphite Iron; Tool Steel
Number of flutes4
Overall length4.3310
OversizeNo
Shank diameter0.5900
Square size0.4420
Tap typeMachine
Threads per inch16
Thread directionRight Hand
Thread length0.9840
Thread size in3/4-16
Thread standardUNF
