Emuge

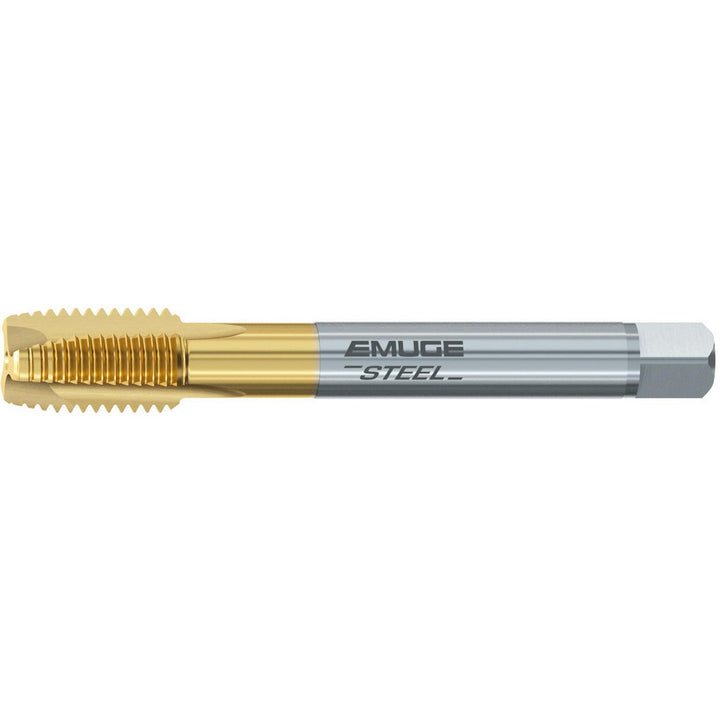

1/2-13 UNC HSS-E Cobalt Spiral Point Tap, TiN - Emuge CU208400.5013
MFR# CU208400.5013Series CU208400
$89.56List $100.62
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-13
CoatingTiN
Description
The Emuge CU208400.5013 is a 1/2-13 UNC HSS-E Cobalt Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E Cobalt
Material applicationSteel; Cast Iron; Non-Ferrous Metal
Number of flutes3
Overall length4.3307
OversizeNo
Shank diameter0.3670
Square size (mm)6.99
StyleSpiral Point
Threads per inch13
Thread directionRight Hand
Thread length in63/64
Thread limitH6
Thread pitch0.0769
Thread size in1/2-13
Thread standardUNC
