Emuge

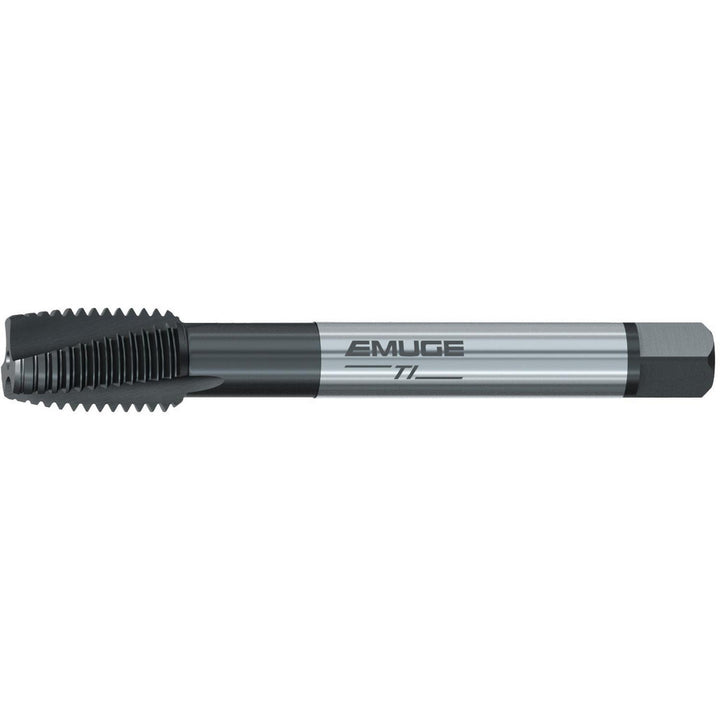

1/2-20 UNF Cobalt Tap, Nitride - Emuge CU306001.5047
MFR# CU306001.5047Series Rekord C-Ti
$100.64List $119.70
Save 15%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingNitride
Description
The Emuge CU306001.5047 is a 1/2-20 UNF Cobalt tap with a Nitride finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2BX
Coating finishNitride
Coolant throughNo
Flute directionLeft Hand
Flute styleSlow
Helix angle15
MaterialCobalt
Material applicationTitanium
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3670
Square size0.2750
Threads per inch20
Thread directionRight Hand
Thread length0.8660
Thread size in1/2-20
Thread standardUNF
